电池包系统方案设计指南下载(福利)

  • 2026-11-04 17:07:00
电池包系统方案设计指南下载(福利)

之前已经分享过电池包系统方案设计指南文章，这一期来送一个福利，关注本公众号+点击❤️推荐+转发朋友圈得到20个赞，即可加小编微信发截图领取原文档，谢谢！

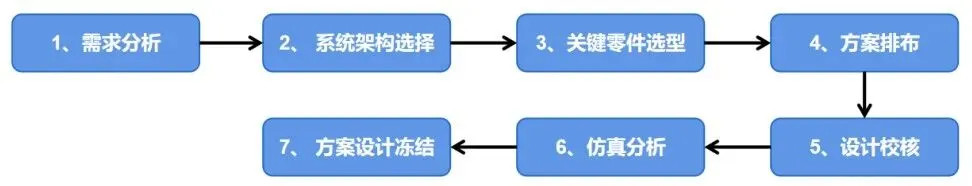

一、系统方案设计流程

二、方案选择

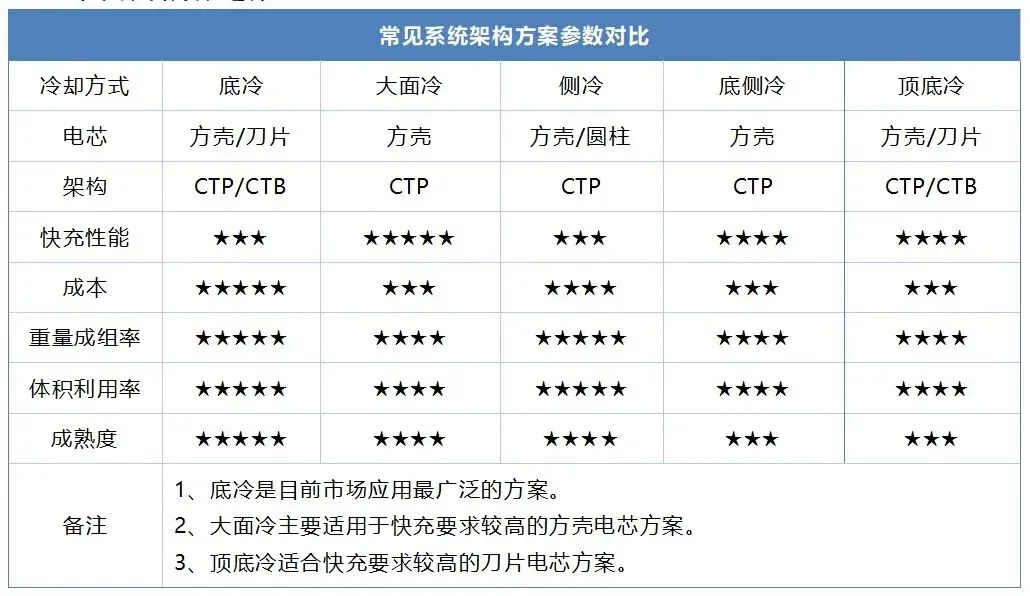

系统方案对比

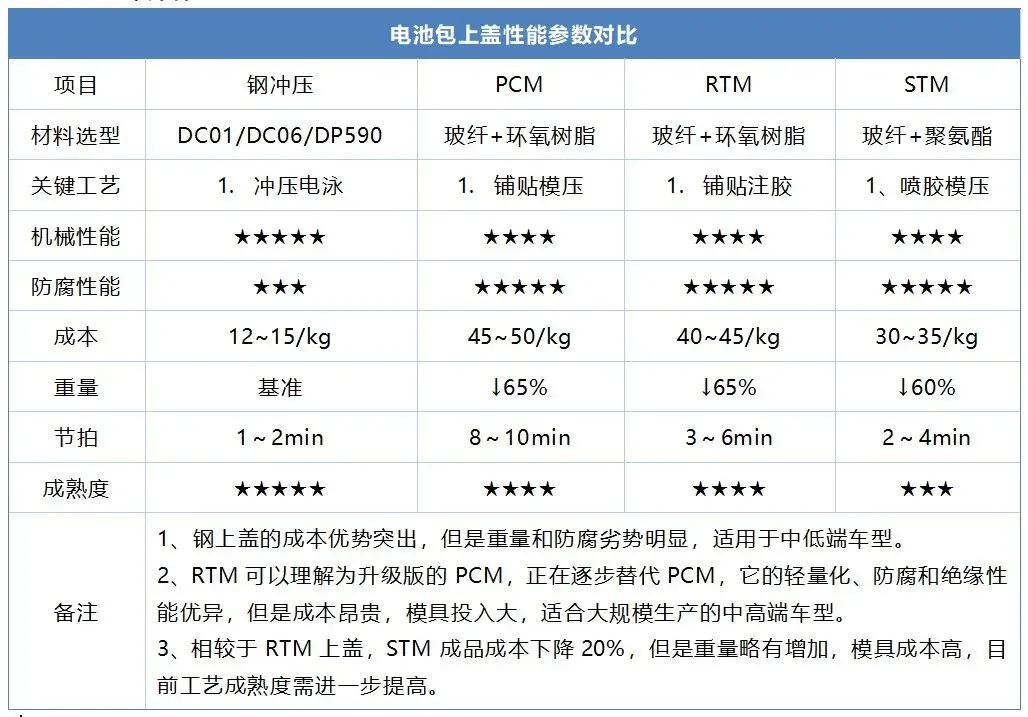

上盖方案对比

下箱体方案对比

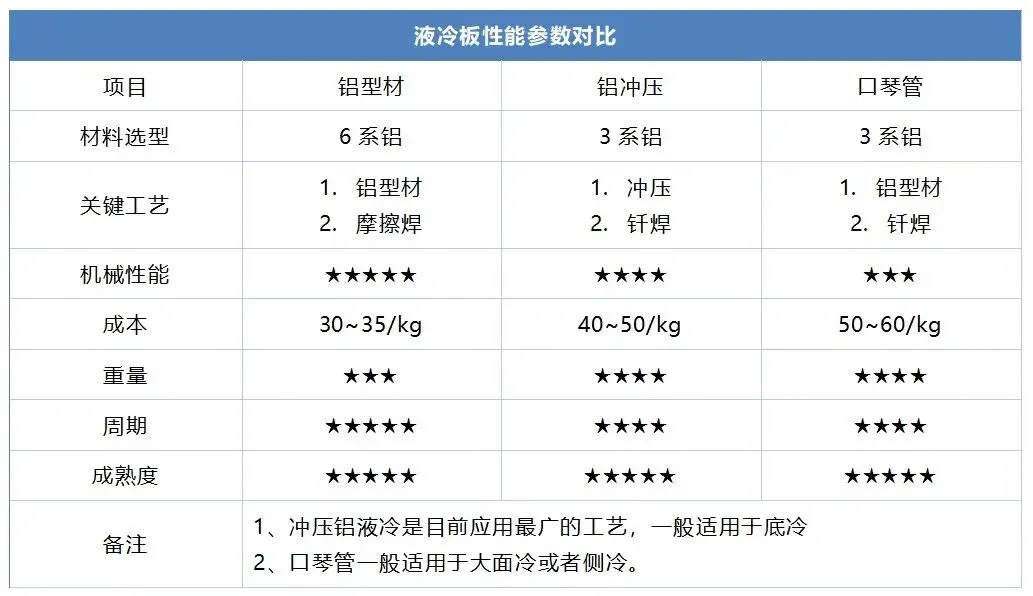

液冷板方案对比

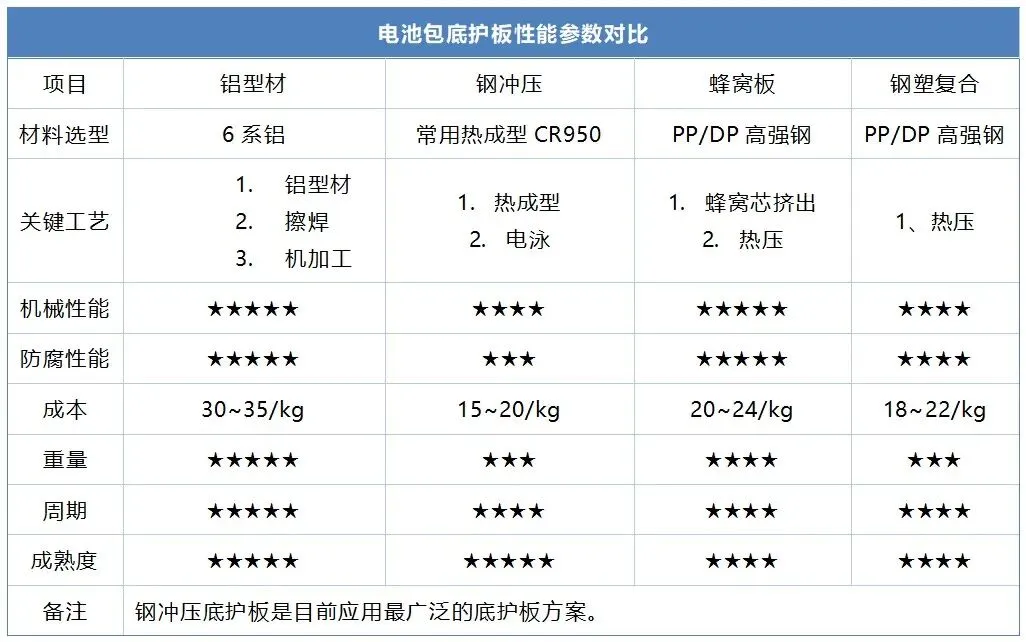

底护板方案对比

未完待续……

电池包系统方案设计指南

电池包铝型材下箱体设计规范

电池包CCS设计规范

动力电池热管理系统设计规范

电池包FPC设计规范

除电池包系统设计指南外，还有一系列的设计规范原文档已更新到知识星球，可根据需要进行下载。

小编创建的知识星球设有电池包系统及零部件、储能系统、电芯设计等系列相关资料，需要下载学习技术资料的朋友请扫码加入知识星球。

另外，有需要进行电池包相关技术交流的朋友也可扫码加我好友入群，谢谢！
